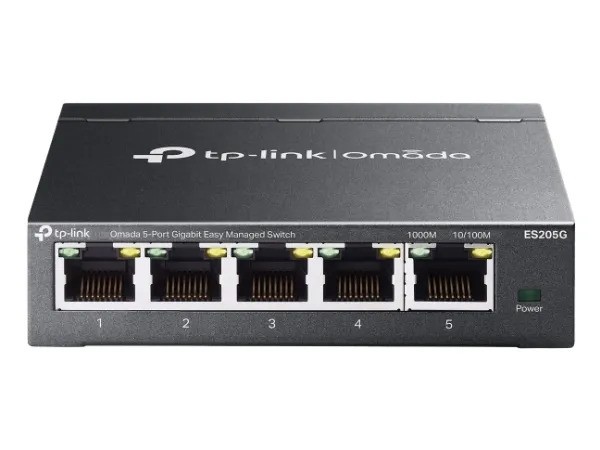

Device Type Switch - 5 ports - Managed
Subtype Gigabit Ethernet
Ports 5 x 10/100/1000Base-T
Performance Switching capacity: 10 Gbps<br>Packet forwarding rate: 7.4 Mpps<br>Packet buffer size: 4 Mbit
Capacity priority queues: 8<br>VLAN groups: 32<br>VLANs supported: 4000
MAC address table size 8K input memory
Jumbo frame support 15KB
Routing protocols IGMPv2, IGMP, IGMPv3
Remote management protocol DHCP
Features Data transport, auto-negotiation, VLAN supported, auto uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradeable, QoS, reset button, cable diagnostics, bandwidth control, lockable, lockable, fanless, lockable metal, lockable, lockable, lockable, lockable, 6 KV surge protection, scheduler, rate limit, SDN, fast egress, Static Link Aggregation, ZTP, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air gap discharge), WRR, loopback detection, VLAN tagging, Unknown storm control, port-based priority, DSCP-based QoS, traffic unit prioritization,
Compliance standards IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.1ab (LLDP)
Power DC 5 V 0.6 A
Dimensions (W x D x H) 10 cm x 9.8 cm x 2.5 cm
8885020620917EAN:
