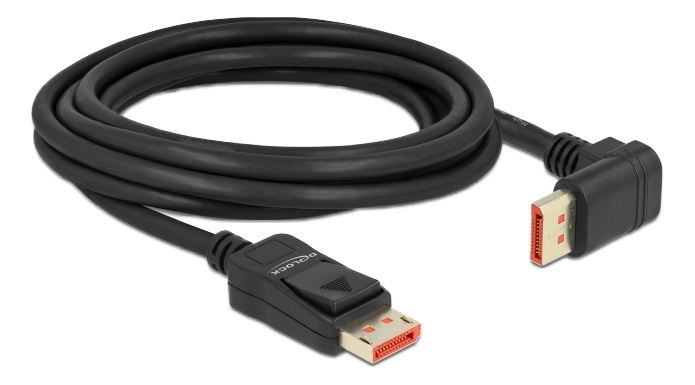

Delock DisplayPort cable male straight to male 90° upwards angled 8K 60 Hz 3m, black
This DisplayPort cable by Delock is used to connect devices with a DisplayPort interface, such as monitors, projectors or televisions, to a PC or laptop. Supporting a maximum bandwidth of 32.4 Gb/s, content can be displayed in 8K Ultra HD (7680 x 4320 at 60 Hz) resp. 5K (5120 x 2880 at 120 Hz) and 4K Ultra HD (3840 x 2160 at 240 Hz) resolution. The high-quality, triple-shielded cable also significantly improves the quality of audio transmissions with a sampling rate of up to 1536 kHz.
• Connectors:
1 x DisplayPort male >
1 x DisplayPort male angled
• DisplayPort 1.4 specification
• Downwards compatible to DisplayPort 1.3, 1.2 and 1.1
• Pin 20 not connected
• Cable gauge: 28 AWG
• Cable diameter: ca. 7 mm
• Copper conductor
• Triple shielded cable
• Contacts gold-plated
• Transmission of audio and video signals
• Data transfer rate up to 32.4 Gb/s
• Resolution up to:
Display with DSC support:
7680 x 4320 i 60 Hz
5120 x 2880 i 120 Hz
3840 x 2160 i 240 Hz
Display without DSC support:
7680 x 4320 i 30 Hz
5120 x 2880 i 60 Hz
3840 x 2160 i 120 Hz
(depending on the system and the connected hardware)
• Supports Display Stream Compression 1.2 (DSC)
• Supports HDR (High Dynamic Range)
• Supports HDCP 1.4 and 2.3
• Supports HBR3 (8.1 Gbps) data rate
• Up to 32 audio channels for speakers
• Up to 1536 kHz audio sampling rate
• Supports colour sampling in 4:4:4, 4:2:2 and 4:2:0 format
• Colour: black
• Length incl. connectors: ca. 3 m
