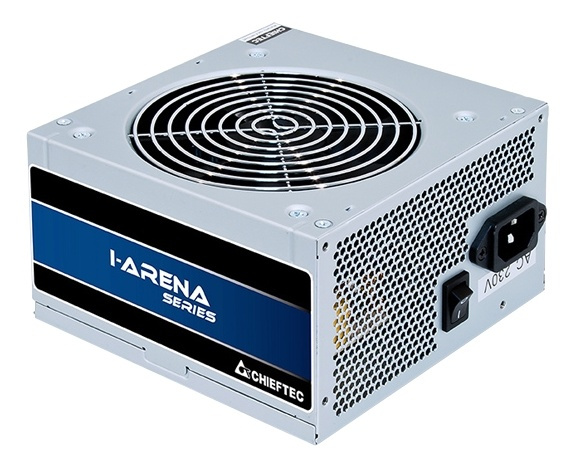

Chieftec GPB-500S PSU, 500W, ATX 12V 2.3, >85% efficency, active PCF, 120mm fan, silver
High efficiency and a highly competitive pricing coupled with the latest “state-of-the-art” PCB design and components distinguish the 6 new power supplies of the iARENA series. Fully aware of environmental requirements, CHIEFTEC offers European PC manufacturers a solution, fixed @230V and with reduced procurement costs thanks to the resource-friendly bulk packaging.
Specifications:
• AC-input: 200-240V 4A
• Frequency: 47-63Hz
• +5V: 17A
• +3.3V: 18A
• 5V&3.3V combined: 110W
• Maximum Load: 500W
• Connectors:
1x20+4-pin ATX
5xSATA-connectors
3xMOLEX-connectors
1x4-pin 12V-connector
1x8-pin(6+2)PCIe-connector
• Security:
UVP(Under Voltage Protection)
OVP(Over Voltage Protection)
SCP(Short Circuit Protection)
OPP(Over load Protection)
AFC(Automatic Fanspeed Control)
• 120mm fan
• Form factor: PS II
• ATX 12V 2.3
Dimensions(WxDxH): 140x150x87mm
