| Audio: | 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) |
| BIOS: | 128Mb AMI UEFI Legal BIOS with GUI support |
| Chipset: | Intel B760 |
| Connector: | 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX P |
| Form factor: | Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm |
| Graphics: | Intel Xe Graphics Architecture (Gen 12) |
| LAN: | Gigabit LAN 10/100/1000 Mb/s, Realtek 8111H |
| Memory: | Dual Channel DDR4 Memory Technology, 2 x DDR4 DIMM Slots |
| OS: | Microsoft Windows 10 64-bit / 11 64-bit |

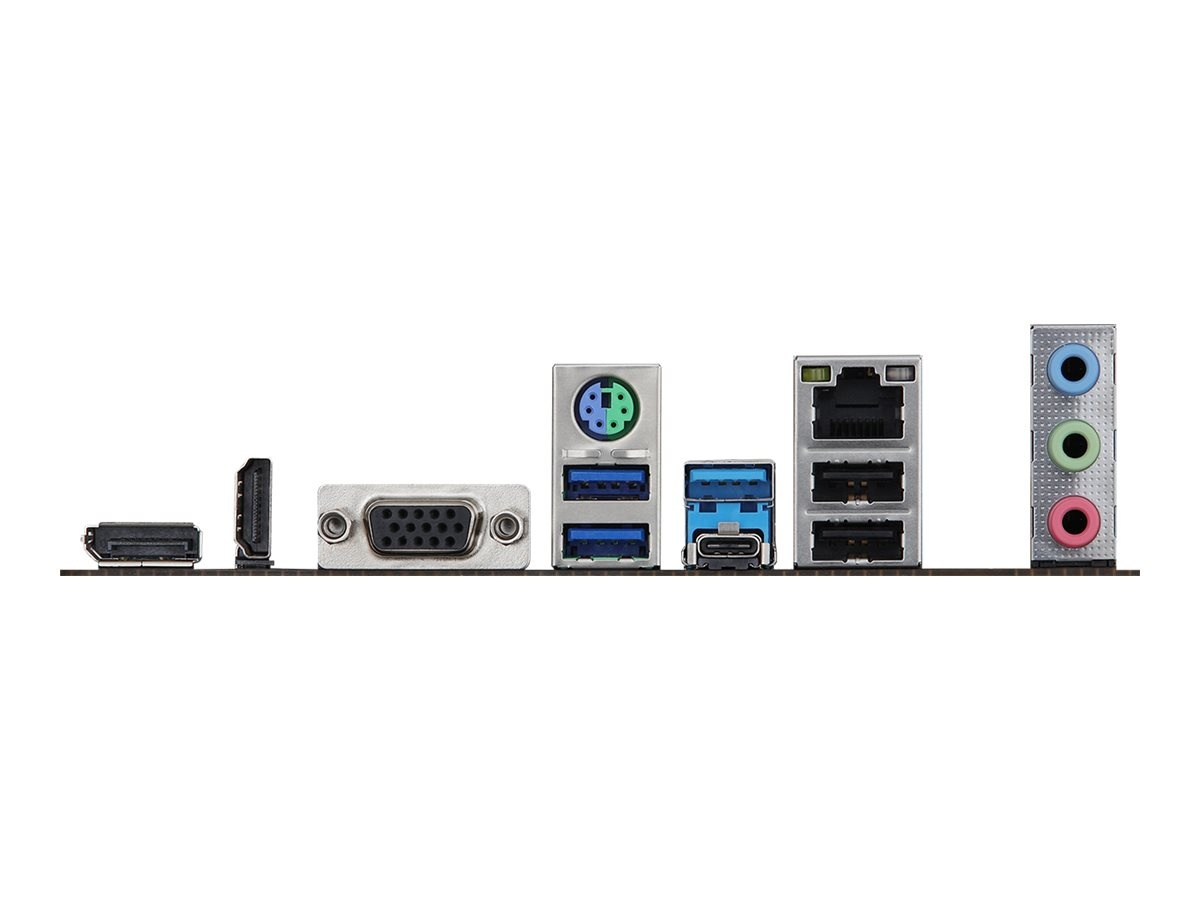

| Rear Panel I/O: | 2 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Spe |
| Slots: | CPU: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode Chipset: 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3), 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| USB: | 1 x USB 3.2 Gen1 Type-C (Rear), 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 5 x USB 2.0 (2 Rear, 3 Front) |
4710483942020EAN:
